Tender
Ardjoeno
Sister Ships
none

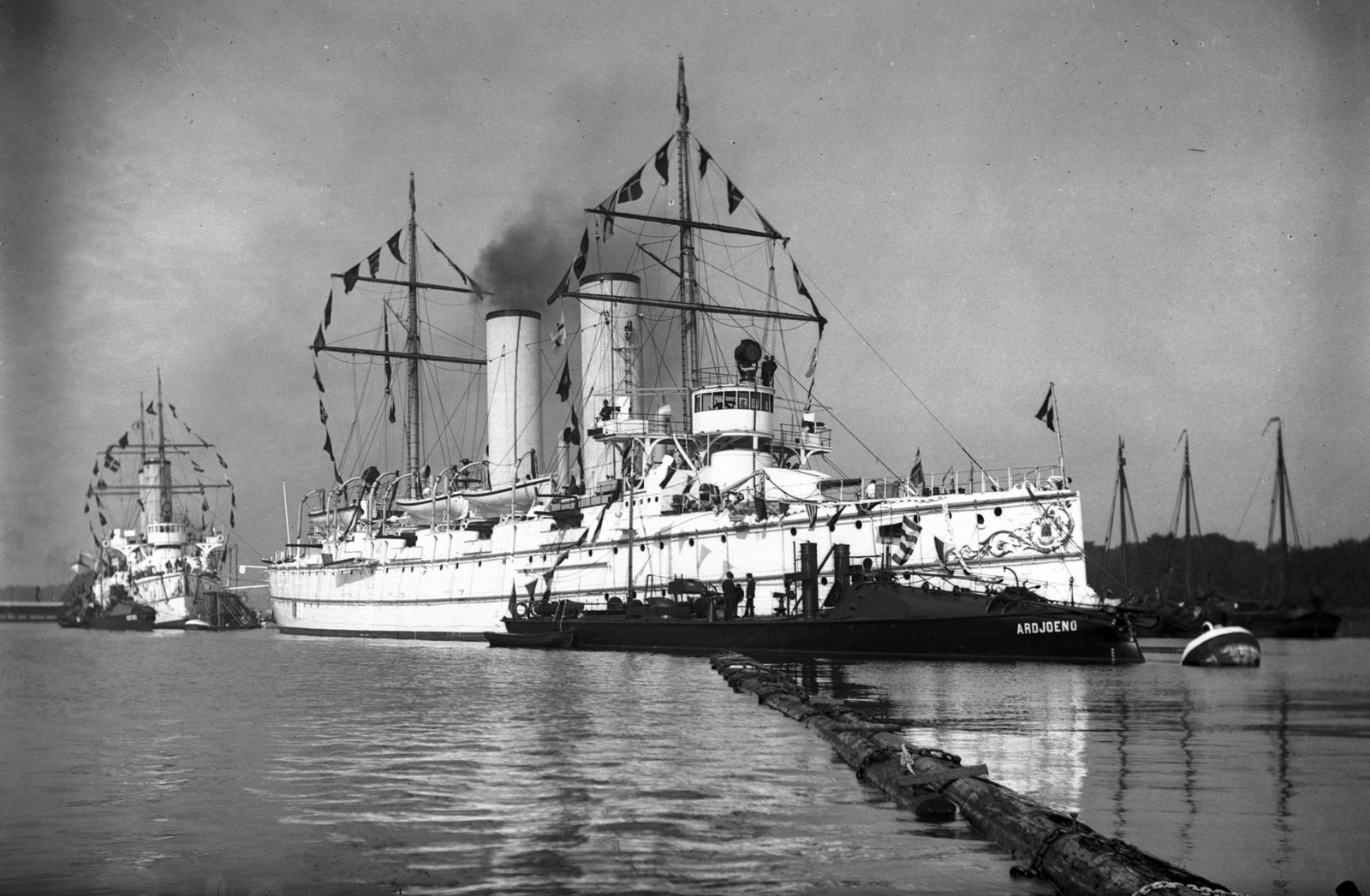

Ardjoeno at the IJ river in Amsterdam, 1898. (Photo by M.G.G. Suyver, © erven M.G.G. Suyver). Please contact us if you know the names/class of the other vessels in this photo.
Caption updates: 20 Jan 2006 - Jan Klootwijk writes "...the ship at the port side of the Ardjoeno is the "pantserdek" ship Hr Ms Zeeland....".
21 Jan 2006 - G.D. Horneman writes ".....these ships are there because of the inauguration festivities (27 Aug 1898 - 9 Sept 1898) of Hr.Ms. Queen Wilhelmina. The following ships attended: "Pantserdek" ships Holland and Zeeland. "pantser" ships Evertsen and Piet Heijn. Torpedoboats Ardjoeno, Batok and Empong...."
23 Jan 2006 - Jan Klootwijk writes "...as to the white “pantserdek” ship in the distance: The Gelderland and Noord Brabant of this class have their hawse holes in a higher position. The bow decoration of the Utrecht, of the same class, is much longer. The nearest ship is already identified as the Zeeland. So of the six ships in this class the white ship in the distance could be either the Holland or the Friesland. With Horneman’s knowledge the white “pantserdek” ship in the distance is identified as the Holland. The torpedoboats attending the inauguration are according to Horneman the Ardjoeno, Batok and Empong. The separate characters of the name on the bow of the torpedoboat alongside the Holland are unreadable. But the length of the white stroke makes it unmistakable that this must be the Empong.(having Horneman's knowledge that it is either Empong or Batok!)





Boat Ardjoeno
Chronology

Originallt built as a torpedo boat.
Surface vessel which guarded submerged submarines.
Sept 1889: Trials
1 Apr 1887: Commissioned
1901: Refitted
1911: Decommissioned
1918: Boilers where removed at the Rijkswerf in Hellevoetsluis, and the vessel was used for target practice

Attached to the
Submarine Service
1913 - 1914, Relieved the ship Hekla.
Built 1886 - 1887, cost Hfl 149915
Yard Yarrow & Co, London
Cost Fl 149915
Le x Be x Dr 38.37 m x 3.88 m x 2.09 m
Tonnage 83 t
Hull Galvanized iron
Power 800 ipk compound
Propellers 1
Speed 21 kts
Complement 16
Torpedo tubes 2 bow
Guns 2 x 3.7 cm, 1 x torpedo cannon
Notes In 1901 the locomotive boiler was replaced by a different type (water pipe), an additional funnel was added as well. Now she has three funnels. Two for the front boiler and one for the afte boiler.
